Our Systems

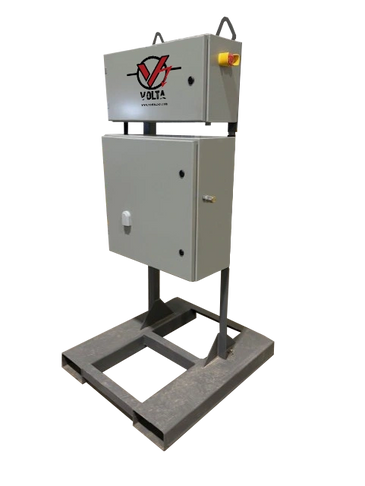

Volta M-Safe N4
Nema 4 IP66, remote mounted or non-area classified, Standard RTU for control systems, powered by Solar or Grid. It supports standard 12/24Vdc, with optional 110/220Vac, or 480Vac 3Ph for hydraulic actuators, including Solar Grid Back Up or autonomous solar options. This system can accommodate double acting or single acting electro-hydraul
Nema 4 IP66, remote mounted or non-area classified, Standard RTU for control systems, powered by Solar or Grid. It supports standard 12/24Vdc, with optional 110/220Vac, or 480Vac 3Ph for hydraulic actuators, including Solar Grid Back Up or autonomous solar options. This system can accommodate double acting or single acting electro-hydraulic systems and can convert double acting actuators to a fail-safe configuration with an onboard battery system.

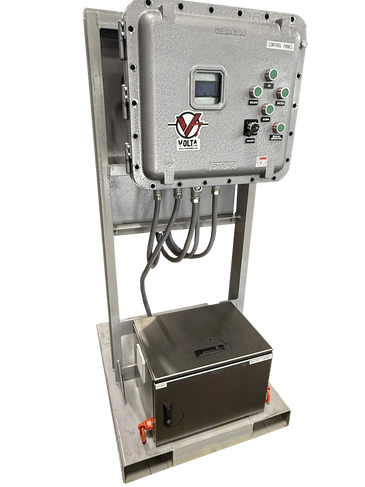

Volta M-Safe D2
Class 1, Div. 2, Standard RTU features a standard 24Vdc power supply with optional 110/220Vac or 480Vac 3Ph configurations. This electro-hydraulic system is designed for double acting operations and can be utilized in both on/off or modulating applications. Additionally, it has the capability to convert double acting to fail safe through
Class 1, Div. 2, Standard RTU features a standard 24Vdc power supply with optional 110/220Vac or 480Vac 3Ph configurations. This electro-hydraulic system is designed for double acting operations and can be utilized in both on/off or modulating applications. Additionally, it has the capability to convert double acting to fail safe through an onboard battery system. With onboard calibration for 4-20mA input and feedback, as well as accuracy calculation, the D2 control systems do not require loop power as they are internally powered. In most cases, our hydraulic actuators achieve modulating accuracy of .1% of full scale, making the Volta D2 ideal for low frequency modulating operations.
Volta Solar
The VLT-1, VLT-2, and VLT-3 models cater to varying power consumption requirements and are fully compatible with all Volta systems. Among these, the VLT-3 excels by providing up to 27Kw of power generation daily. Designed specifically by Volta for seamless integration with their systems, these units feature a standard 300ah LifePo battery
The VLT-1, VLT-2, and VLT-3 models cater to varying power consumption requirements and are fully compatible with all Volta systems. Among these, the VLT-3 excels by providing up to 27Kw of power generation daily. Designed specifically by Volta for seamless integration with their systems, these units feature a standard 300ah LifePo battery, charge controller, and bi-facial solar panels. Additionally, they support integrated control systems for hydraulic actuators, making Volta-Solar suitable for valves up to 36" 600# and enhancing functionality in electro-hydraulic systems.
Volta-BZ
The Volta-BZ is designed to work seamlessly with new or existing hydraulic actuators, including direct gas and gas over hydraulic systems. It is compatible with both Fail-Safe Spring Assisted and Double Acting options. The Volta-BZ is standardly rated for Low Temperatures down to -40F/C, making it ideal for various electro-hydraulic syste
The Volta-BZ is designed to work seamlessly with new or existing hydraulic actuators, including direct gas and gas over hydraulic systems. It is compatible with both Fail-Safe Spring Assisted and Double Acting options. The Volta-BZ is standardly rated for Low Temperatures down to -40F/C, making it ideal for various electro-hydraulic systems.
Key Features:
- Designed For Low Temp - Internal Heater
- Standard 24Vdc 10a power, Optional 120/220Vac, 480Vac
- Standard 12/24Vdc Permissive Modbus TCP/IP
- Remote Mounted Skid w/Fork Pockets
- UL/CSA Rated
Ideal For:
- Low Temperature Applications
- 1/4 Turn Valves
- Linear Valves
- Well Head Valves
- On/Off ESD
Volta-Lite
Volta-Lite
Volta Lite represents our interpretation of the conventional Basic Electro-Hydraulic actuator, specifically designed for simplicity, reliability, and high performance within electro-hydraulic systems. Key Features: External EXP Rated brushless 24Vdc motor, no HMI – featuring a streamlined, no-frills design, and Open/Closed/Remote function
Volta Lite represents our interpretation of the conventional Basic Electro-Hydraulic actuator, specifically designed for simplicity, reliability, and high performance within electro-hydraulic systems. Key Features: External EXP Rated brushless 24Vdc motor, no HMI – featuring a streamlined, no-frills design, and Open/Closed/Remote functionality complemented by status indicator lights. Ideal For: Small displacement applications, basic On/Off control (up to 16” 600#), single acting systems with fail open or fail closed options, ¼ turn valves, and environments classified as Standard Class I, Div. 2. It operates on standard 24Vdc power, with an optional 120VAC supply, making it an excellent choice for various hydraulic actuators.
Some of Our Standards
HMI Interface
All Models of Volta, except for the E-Safe Lite and BZ, come equipped with a viewable HMI screen that enhances user interaction with the control systems. The Volta-BZ features a Matrix Screen and is integrated with Siemens TDE for advanced functionality. The M-Safe D2 model offers visibility through explosion-proof glass and includes C1D2
All Models of Volta, except for the E-Safe Lite and BZ, come equipped with a viewable HMI screen that enhances user interaction with the control systems. The Volta-BZ features a Matrix Screen and is integrated with Siemens TDE for advanced functionality. The M-Safe D2 model offers visibility through explosion-proof glass and includes C1D2 buttons, allowing for full operation of electro-hydraulic systems and manual control without the need to open the enclosure. In contrast, the E-Safe Lite Models are designed with simple push-button controls for Open/Closed and Local/Remote operations, complete with status lights for easy monitoring.
Skid Mounted
All Volta Models, except for the E-Safe Lite, come skid mounted. This design allows for quicker installation and commissioning of hydraulic actuators and control systems. The skid adds mass and weight to the control system, ensuring a more stable installation. In contrast, the E-Safe Lite is directly mounted on the actuator, similar to traditional, basic electro-hydraulic systems.

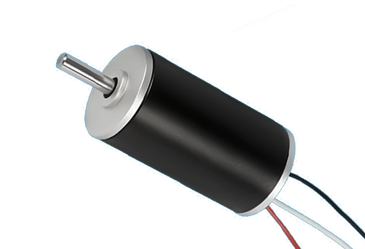

Brushless DC Motors
85-90% more efficient than brushed motors, hydraulic actuators offer a longer life span and low maintenance requirements. With a high torque-to-weight ratio and precise speed control, these systems also ensure quiet operation and high power density. The efficient heat dissipation in these electro-hydraulic systems allows for higher RPM an
85-90% more efficient than brushed motors, hydraulic actuators offer a longer life span and low maintenance requirements. With a high torque-to-weight ratio and precise speed control, these systems also ensure quiet operation and high power density. The efficient heat dissipation in these electro-hydraulic systems allows for higher RPM and digital control capabilities, resulting in better thermal management. Additionally, their compact design prevents dust accumulation and provides excellent position control, featuring higher stall torque and instantaneous reversal.
Exxon-Mobil Univis HVI 13 Hydraulic Fluid
Characterized by its unusually high viscosity indexes, Univis 13 is engineered to maintain close viscosity control over a wide range of temperature applications, making it ideal for use in control systems. Its resistance to viscosity change enables Univis HVI oils to be highly recommended for hydraulic systems and electro-hydraulic system
Characterized by its unusually high viscosity indexes, Univis 13 is engineered to maintain close viscosity control over a wide range of temperature applications, making it ideal for use in control systems. Its resistance to viscosity change enables Univis HVI oils to be highly recommended for hydraulic systems and electro-hydraulic systems that are subject to wide temperature variations. Rated to -60C/-76F, it is also suitable for hydraulic actuators.
